SSRS Custom Drawing (Code)

SQL Server 2005 - 2012

After my last blog post, I got a lot of requests for the code I used for the graphics. So this post just shows the source code for the graphics of my last post.

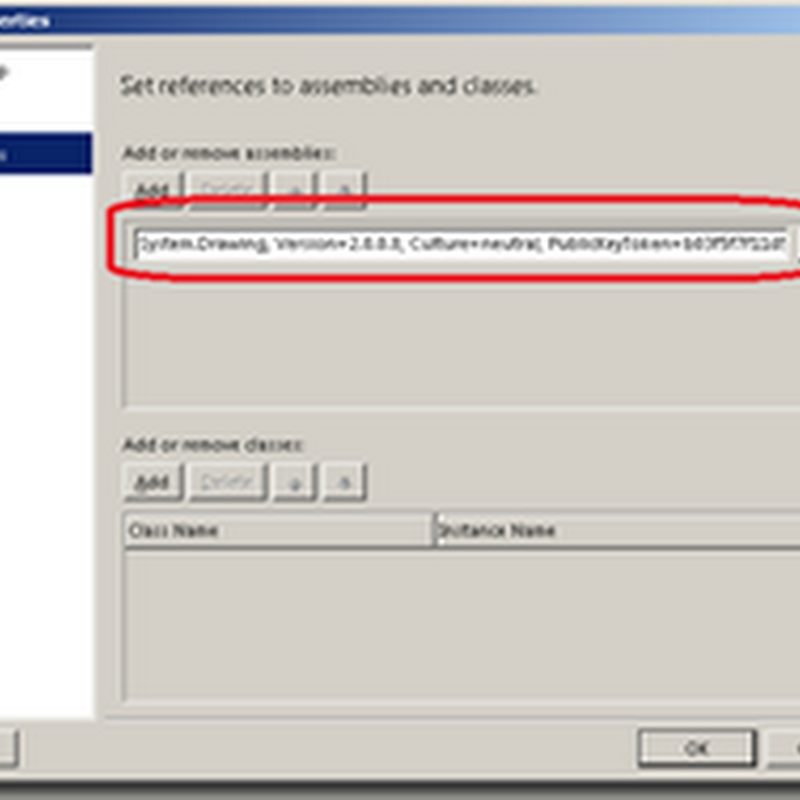

Both examples require that you include a reference to System.Drawing to your report as shown below:



1. The deviation chart element

Here is the code used for the last column’s image:

Function PaintAbw(ByVal width As Integer, ByVal height As Integer, ByVal min As Single, ByVal max As Single, ByVal middle As Single, ByVal cur As Single) As System.Drawing.Bitmap
    ' Draws a vertical deviation chart
    ' parameters
    '   width/height   width and height of the resulting image in pixel
    '   min/max        minimum and maximum value of the data being passed to the chart
    '   middle         position of the vertical reference line (usually zero or avg of the data)
    '                  data points below this value are plotted in red, above this value in blue
    '   cur            actual value to display

    Dim objBitmap As System.Drawing.Bitmap
    Dim objGraphic As System.Drawing.Graphics
    Dim myBrush As System.Drawing.Brush
    Dim x0 As Integer, x As Integer

    ' Initialize the graphic
    objBitmap = New System.Drawing.Bitmap(width, height)
    objGraphic = System.Drawing.Graphics.FromImage(objBitmap)
    objGraphic.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias
    objGraphic.FillRectangle(System.Drawing.Brushes.White, 0, 0, width, height)

    ' Draw the vertical line (the "middle" position)
    x0 = 8 + ((width - 18) * (middle - min)) \ (max - min)
    objGraphic.DrawLine(System.Drawing.Pens.Gray, x0, 0, x0, height)
    If cur < min Then cur = min
    If cur > max Then cur = max

    ' Draw the deviation (line and circle)
    x = 8 + ((width - 18) * (cur - min)) \ (max - min)
    objGraphic.DrawLine(System.Drawing.Pens.Gray, x0, height \ 2, x, height \ 2)
    If cur < middle Then
        myBrush = New System.Drawing.SolidBrush(System.Drawing.Color.FromArgb(215, 100, 100))
    Else
        myBrush = New System.Drawing.SolidBrush(System.Drawing.Color.FromArgb(100, 100, 215))
    End If
    objGraphic.FillPie(myBrush, x - 4, height \ 2 - 4, 8, 8, 0, 360)

    ' Return the image as type bitmap
    Return objBitmap
End Function

Function PaintAbwBmp(ByVal width As Integer, ByVal height As Integer, ByVal min As Single, ByVal max As Single, ByVal middle As Single, ByVal cur As Single) As Byte()
    ' Wrapper function for PaintAbw. This function is to be called from reporting services as
    ' for parameters see PaintAbw

    Dim bmpImage As System.Drawing.Bitmap

    ' Get bitmap from PaintAbw
    bmpImage = PaintAbw(width, height, min, max, middle, cur)

    ' Convert this bitmap to a byte array of type BMP
    Dim stream As System.IO.MemoryStream = New IO.MemoryStream
    Dim bitmapBytes As Byte()
    bmpImage.Save(stream, System.Drawing.Imaging.ImageFormat.Bmp)
    bitmapBytes = stream.ToArray
    stream.Close()
    bmpImage.Dispose()
    Return bitmapBytes
End Function

Examples

PaintAbw(100, 20, -100.0, 100.0, 0.0, 50.0)
PaintAbw(100, 20, 0.0, 100.0, 0.0, 80.0)
PaintAbw(100, 20, -100.0, 100.0, 0.0, -80.0)

Usage within the report as the source for a bitmap

Sample Expression:

=Code.PaintAbwBmp(100,20,Min(Fields!Value.Value, "DataSet1"),Max(Fields!Value.Value, "DataSet1"), Avg(Fields!Value.Value, "DataSet1"), Fields!Value.Value)



2. The KPI slider

Here is the code used for the last column’s image:

Function PaintBox(ByVal width As Integer, ByVal height As Integer, ByVal level As Single) As System.Drawing.Bitmap
    ' Draws a range chart (blending from red to green)
    ' parameters
    '   width/height   width and height of the resulting image in pixel
    '   min/max        minimum and maximum value of the data being passed to the chart
    '   level          position of slide
    '                  0: left, 1: right, 0.5 middle
    '                  make sure you scale this value to your needs

    Dim objBitmap As System.Drawing.Bitmap
    Dim objGraphic As System.Drawing.Graphics

    ' Initialize the graphic
    objBitmap = New System.Drawing.Bitmap(width, height)
    objGraphic = System.Drawing.Graphics.FromImage(objBitmap)
    objGraphic.SmoothingMode = System.Drawing.Drawing2D.SmoothingMode.AntiAlias
    objGraphic.FillRectangle(System.Drawing.Brushes.White, 0, 0, width, height)

    ' Create color gradient for the background
    Dim BrushRedYellow As New System.Drawing.Drawing2D.LinearGradientBrush(New System.Drawing.Rectangle(8, 0, (width - 16) \ 2, height), System.Drawing.Color.Red, System.Drawing.Color.Yellow, System.Drawing.Drawing2D.LinearGradientMode.Horizontal)
    Dim BrushYellowGreen As New System.Drawing.Drawing2D.LinearGradientBrush(New System.Drawing.Rectangle(7 + (width - 16) \ 2, 0, (width - 16) \ 2, height), System.Drawing.Color.Yellow, System.Drawing.Color.Green, System.Drawing.Drawing2D.LinearGradientMode.Horizontal)
    objGraphic.FillRectangle(BrushRedYellow, 8, 3, (width - 16) \ 2, height - 10)
    objGraphic.FillRectangle(BrushYellowGreen, 8 + (width - 16) \ 2, 3, (width - 16) \ 2, height - 10)

    ' Scale level properly
    If level > 1 Then level = 1
    If level < 0 Then level = 0

    ' Draw the arrow
    Dim Arrow(2) As System.Drawing.PointF
    Arrow(0) = New System.Drawing.PointF(8 + (width - 16) * level, height - 10)
    Arrow(1) = New System.Drawing.PointF(16 + (width - 16) * level, height - 2)
    Arrow(2) = New System.Drawing.PointF(0 + (width - 16) * level, height - 2)
    objGraphic.FillPolygon(System.Drawing.Brushes.Black, Arrow)

    ' Return the image as type bitmap
    Return objBitmap
End Function

Function PaintBoxBmp(ByVal width As Integer, ByVal height As Integer, ByVal level As Single) As Byte()
    ' Wrapper function for PaintBox. This function is to be called from reporting services as
    ' for parameters see PaintBox
    Dim bmpImage As System.Drawing.Bitmap

    ' Get bitmap from PaintBox
    bmpImage = PaintBox(width, height, level)

    ' Convert this bitmap to a byte array of type BMP
    Dim stream As System.IO.MemoryStream = New IO.MemoryStream
    Dim bitmapBytes As Byte()
    bmpImage.Save(stream, System.Drawing.Imaging.ImageFormat.Bmp)
    bitmapBytes = stream.ToArray
    stream.Close()
    bmpImage.Dispose()
    Return bitmapBytes
End Function



Examples

PaintBox(100, 20, 0.0)
PaintBox(100, 20, 1.0)
PaintBox(100, 20, 0.5)



=Code.PaintBoxBmp(100,20,Fields!Sales_Amount.Value/Fields!Sales_Amount_Quota.Value)

Sample Expression:

=Code.PaintAbwBmp(100,20,Min(Fields!Value.Value, "DataSet1"),Max(Fields!Value.Value, "DataSet1"), Avg(Fields!Value.Value, "DataSet1"), Fields!Value.Value)
